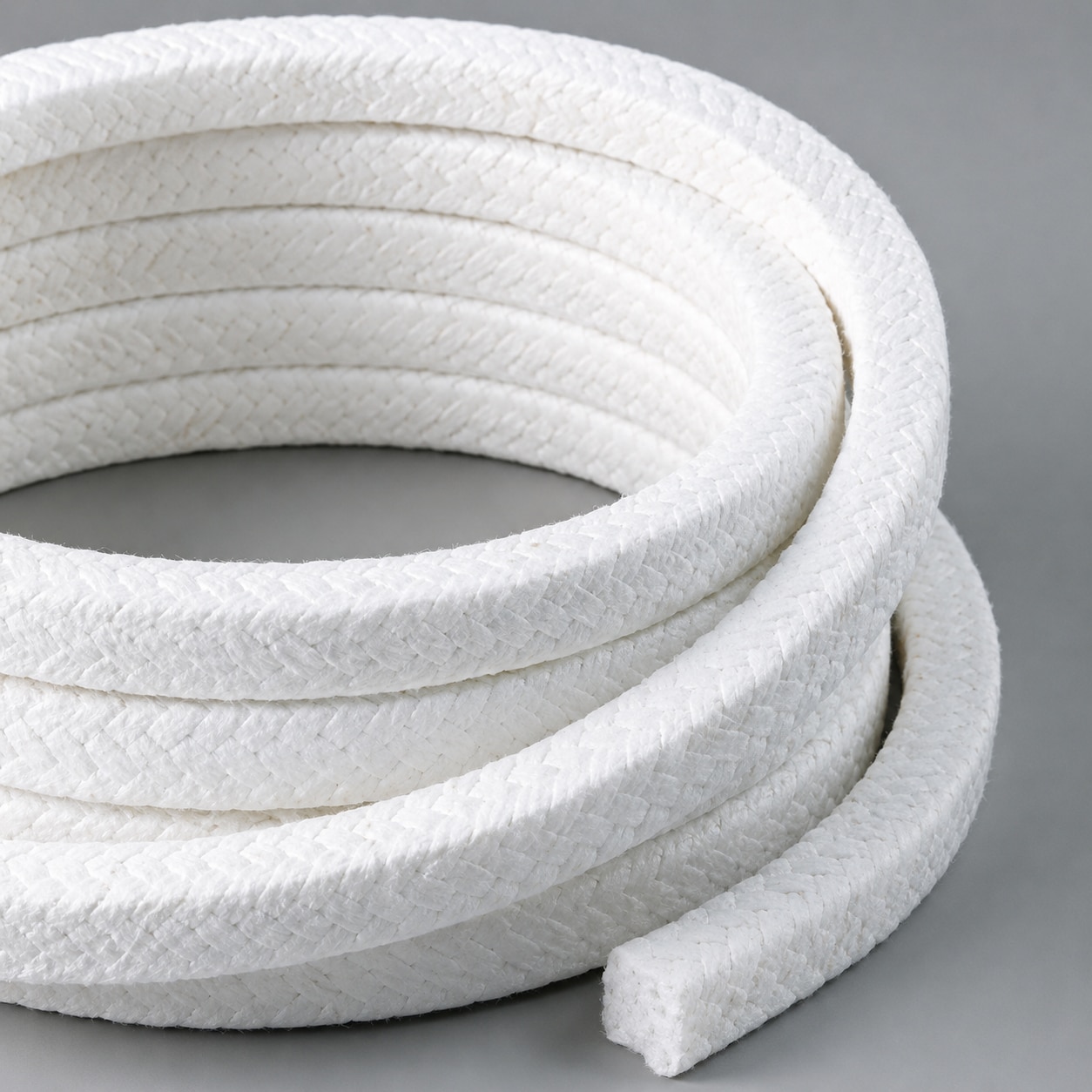

Champion Ultraflon™ Premium PTFE Gland Packing

Champion Ultraflon™ Premium PTFE Gland Packing is a premium-quality sealing packing manufactured from high-purity, thermally stable expanded PTFE (ePTFE) fiber yarn. The yarn is impregnated with PTFE particles to provide enhanced lubrication, resulting in low friction, excellent chemical resistance, and long-lasting sealing performance in pumps, valves, mixers, and rotating equipment.

Key Features

Premium quality expanded PTFE (ePTFE) fiber construction

PTFE impregnated for superior lubrication

Excellent resistance to chemicals, acids, alkalis, and solvents

Very low coefficient of friction

High corrosion resistance

Excellent dimensional stability

Long service life with minimal maintenance

Easy to install and highly conformable

Clean, non-contaminating white packing

Suitable for dynamic and static sealing applications

Applications

Centrifugal pumps

Rotary pumps

Reciprocating pumps

Valves

Mixers

Agitators

Reactors

Extruders

Chemical processing plants

Pharmaceutical industry

Food processing industry

Petrochemical plants

Paper & pulp mills

Water treatment plants

Technical Specifications

Material: Expanded PTFE (ePTFE) Fiber

Color: White

Construction: Cross-plaited braided packing

Temperature Range: Up to +260°C

pH Range: 0–14

Suitable Media: Water, steam, oils, chemicals, solvents, acids, alkalis and most aggressive fluids

Available Sizes: 3 mm to 25 mm and larger sizes on request

Advantages

Leak-proof sealing performance

Reduced shaft and sleeve wear

Low maintenance costs

High reliability in harsh chemical environments

Excellent sealing under continuous operation

Long operational life

Industries Served

Chemical

Petrochemical

Oil & Gas

Pharmaceutical

Food & Beverage

Power Generation

Textile

Paper & Pulp

Marine

Water & Wastewater Treatment
